TB / TBR Series
TB / TBR Series
Precision Planetary Gearboxes
Standard, Modified and Customized
Product Features
- The most versatile model with wide range of ratios
- High rigidity and output torque
- Easy mount to any motor
- Electroless nickel surface plating for anti-corrosion

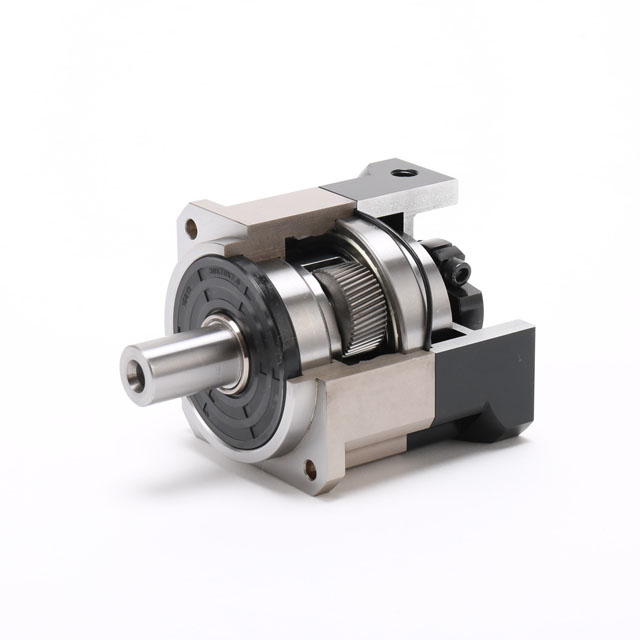

- Single-piece design for output shaft & planet carrier with robust bearings
- Single-piece design for ring gear & housing
- Single-piece design for sun gear & input shaft ensuring high concentricity
- Full complement solid uncaged needle roller bearings for planet gears
- All helical gearing for low noise and high precision
- Extreme low vibration and lifelong maintenance-free
- Low backlash
- 1-stage : ≤1arcmin / ≤3arcmin / ≤5arcmin
- 2-stage : ≤3arcmin / ≤5arcmin / ≤7arcmin
Downloads
TB / TBR Datasheet

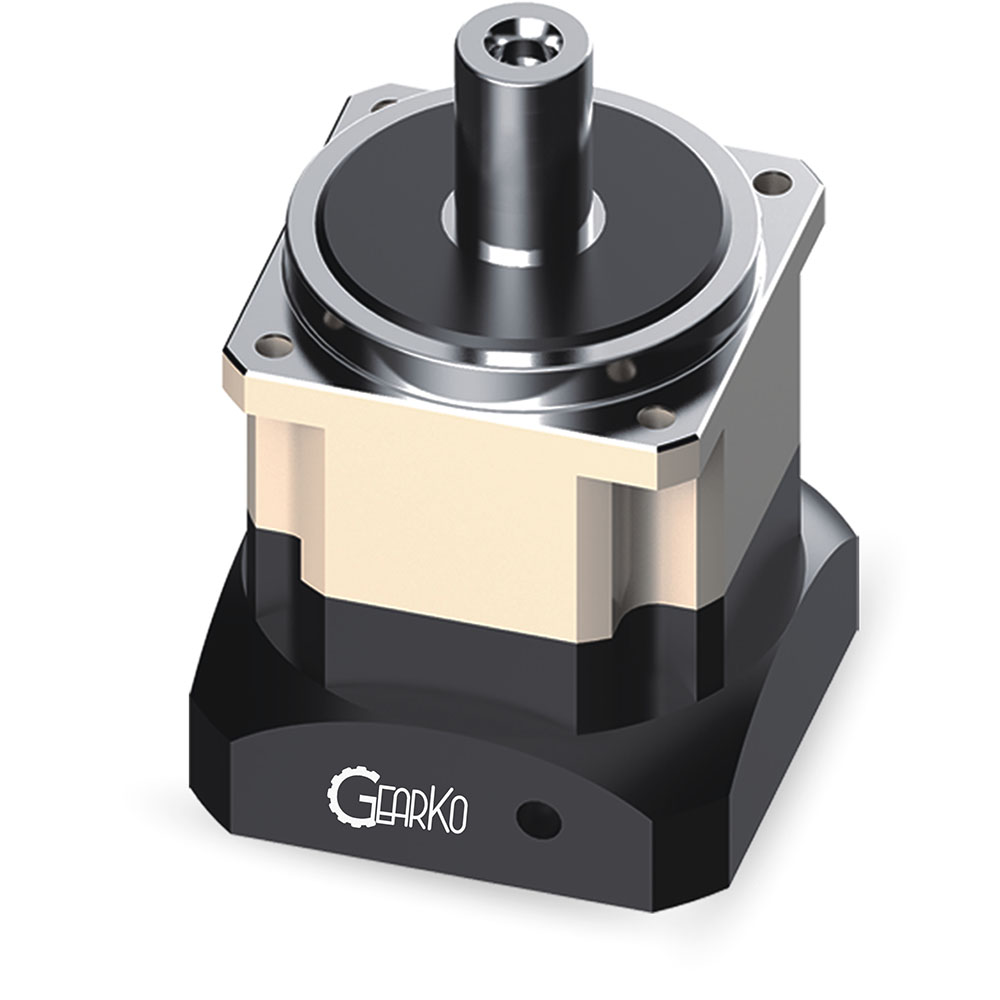

Inline – TB Series
Shaft Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Radial
TB042 - 1 Stage
042 mm
4 to 8, 10
5,000
10,000
14 to 20
25 to 36
390
780
TB060 - 1 Stage
060 mm
3 to 8, 10
5,000
10,000
42 to 58
75 to 104
765
1,530
TB090 - 1 Stage
090 mm
3 to 8, 10
4,000
8,000
102 to 160
183 to 88
1,625
3,250
TB115 - 1 Stage
115 mm
3 to 8, 10
4,000
8,000
210 to 333
378 to 599
3,350
6,700
TB142 - 1 Stage
142 mm
3 to 8, 10
3,000
6,000
340 to 650
612 to 1170
4,700
9,400
TB180 - 1 Stage
180 mm
3 to 8, 10
3,000
6,000
590 to 1,200
1,062 to 2,160
7,250
14,500
TB220 - 1 Stage
220 mm
3 to 8, 10
2,000
4,000
1,150 to 2,008
2,070 to 3,614
25,000
50,000
TB042 - 2 Stage
042 mm
20 to 100
5,000
10,000
14 to 20
25 to 36
390
780
TB060 - 2 Stage
060 mm
15 to 100
5,000
10,000
42 to 58
75 to 104
765
1,530
TB090 - 2 Stage
090 mm
15 to 100
4,000
8,000
102 to 160
183 to 288
1,625
3,250
TB115 - 2 Stage
115 mm
15 to 100
4,000
8,000
210 to 333
378 to 599
3,350
6,700
TB142 - 2 Stage
142 mm
15 to 100
3,000
6,000
340 to 650
612 to 1170
4,700
9,400
TB180 - 2 Stage
180 mm
15 to 100
3,000
6,000
590 to 1,200
1,062 to 2,160
7,250
14,500
TB220 - 2 Stage
220 mm
15 to 100
2,000
4,000
1,150 to 2,008
2,070 to 3,614
25,000
50,000

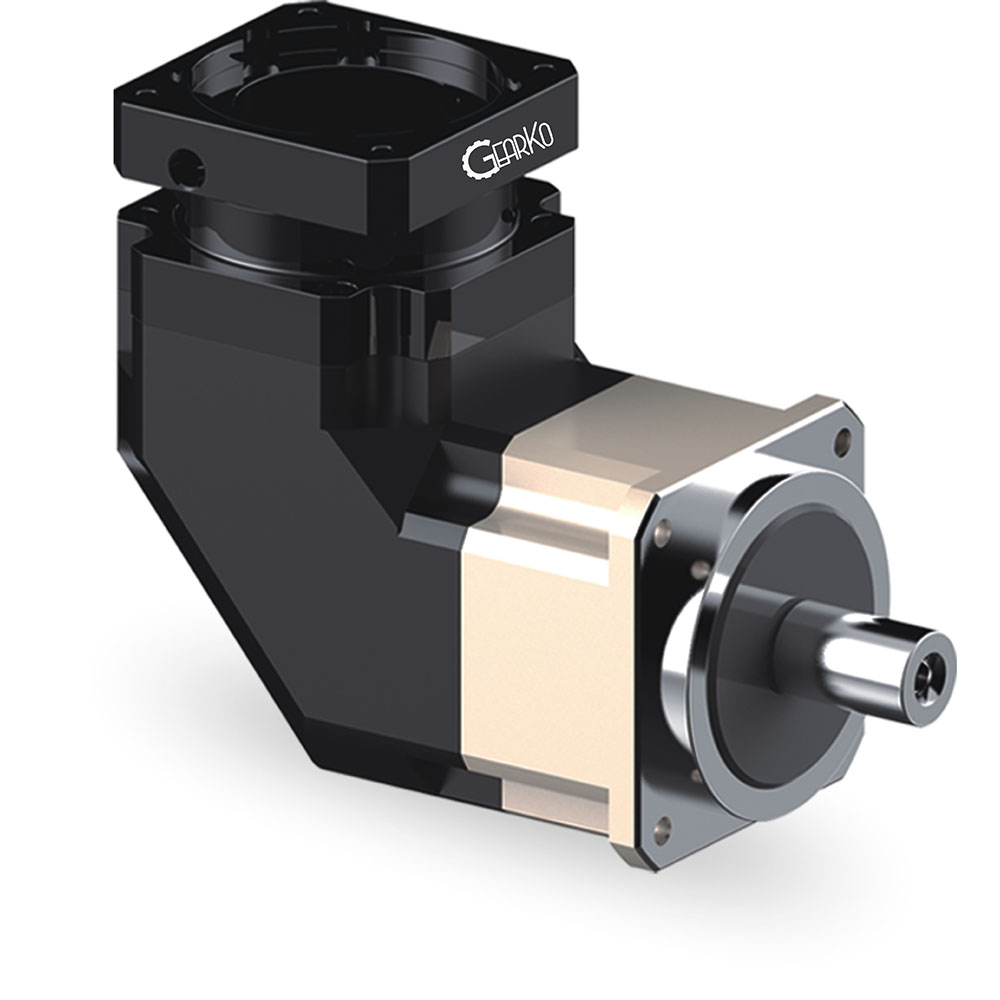

Right Angle – TBR Series Right Angle
Shaft Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Radial
TBR042 - 1 Stage
042 mm
3 to 8,10
5,000
10,000
14 to 19
25 to 34
390
780
TBR060 - 1 Stage
060 mm
3 to 8, 10 to 20
5,000
10,000
42 to 58
75 to 104
765
1,530
TBR090 - 1 Stage
090 mm
3 to 8, 10 to 20
4,000
8,000
102 to 150
183 to 270
1,625
3,250
TBR115 - 1 Stage
115 mm
3 to 8, 10 to 20
4,000
8,000
210 to 330
378 to 594
3,350
6,700
TBR142 - 1 Stage
142 mm
3 to 8, 10 to 20
3,000
6,000
340 to 650
612 to 1,170
4,700
9,400
TBR180 - 1 Stage
180 mm
3 to 8, 10 to 20
3,000
6,000
590 to 1,200
1,062 to 2,160
7,250
14,500
TBR042 - 2 Stage
042 mm
14,15,17,18,19
5,000
10,000
14 to 19
25 to 34
390
780
TBR060 - 2 Stage
060 mm
25 to 200
5,000
10,000
42 to 58
75 to 104
765
1,530
TBR090 - 2 Stage
090 mm
25 to 200
4,000
8,000
102 to 150
183 to 270
1,625
3,250
TBR115 - 2 Stage
115 mm
25 to 200
4,000
8,000
210 to 330
378 to 594
3,350
6,700
TBR142 - 2 Stage
142 mm
25 to 200
3,000
6,000
340 to 650
612 to 1,170
4,700
9,400
TBR180 - 2 Stage
180 mm
25 to 200
3,000
6,000
590 to 1,200
1,062 to 2,160
7,250
14,500
