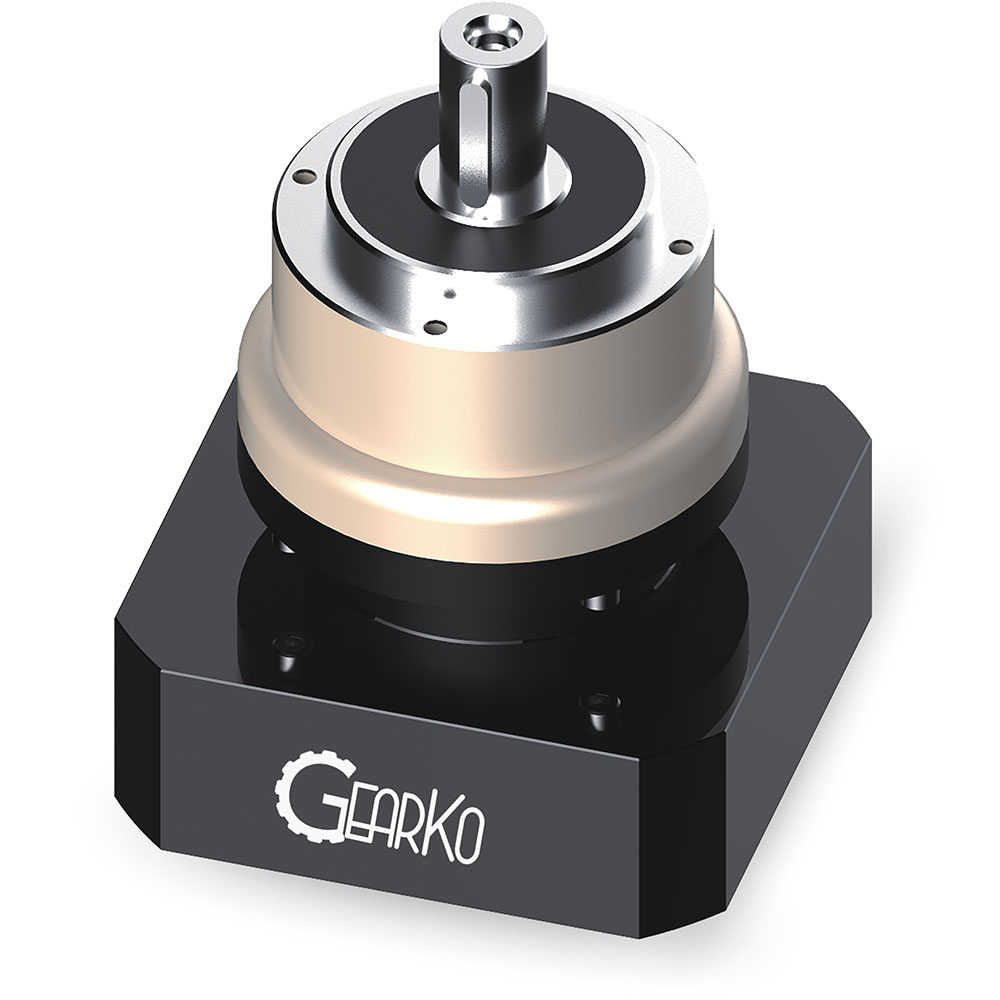

TCB / TCBR Series
TCB / TCBR Series
Precision Planetary Gearboxes
Standard, Modified and Customized
Product Features
- Modular design with optimized performance
- Easy mount to any motor
- Single-piece design for output shaft & planet carrier
- Single-piece design for ring gear & housing
- Full complement solid uncaged needle roller bearings for planetary gears
- All precision helical gearing for low noise and high precision
- Extreme low vibration and lifelong maintenance-free
- Low backlash
- 1-stage : ≤ 3arcmin / ≤ 5arcmin
- 2-stage : ≤ 5arcmin / ≤ 7arcmin
Downloads
TCB / TCBR Datasheet

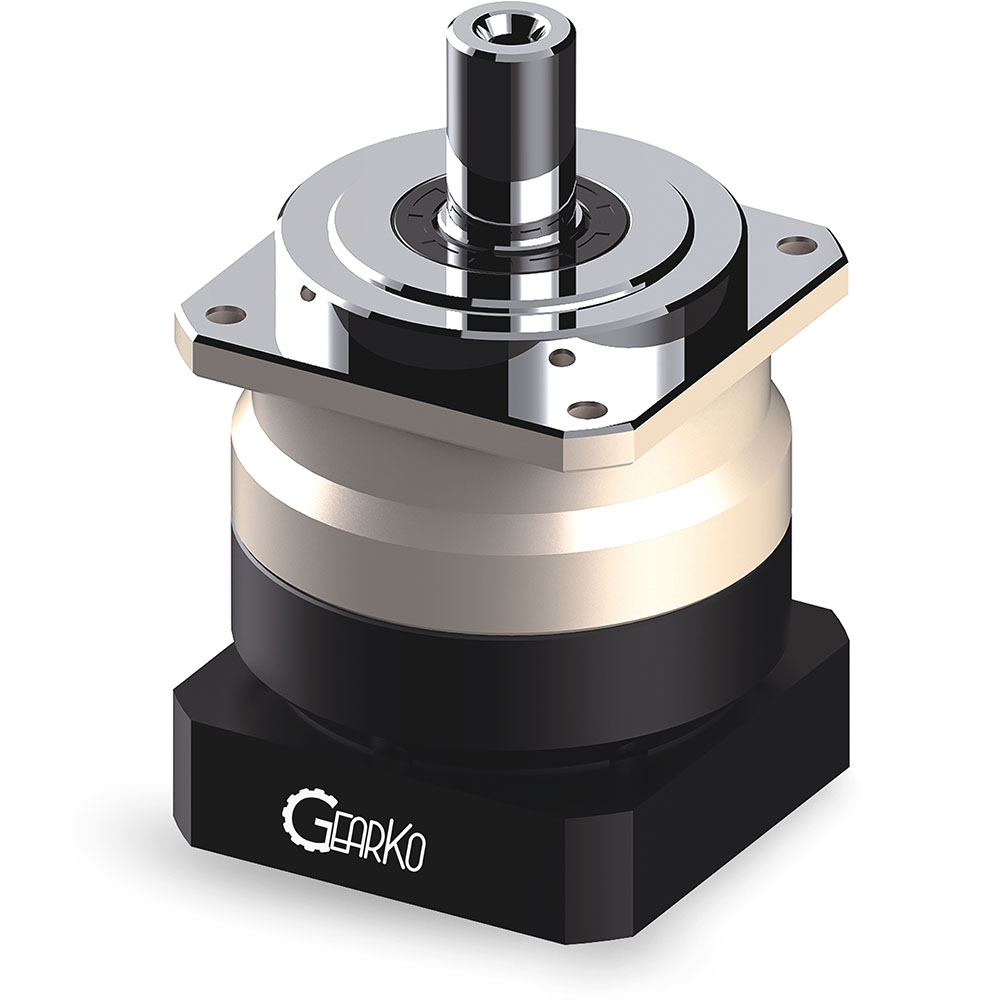

Inline – TCB Series
Shaft Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Radial
TCB042 - 1 Stage
042 mm
4 to 8,10
3,000
6,000
14 to 19
25 to 34
380
760
TCB060 - 1 Stage
060 mm
3 to 8,10
3,000
6,000
35 to 55
63 to 99
765
1,530
TCB090 - 1 Stage
090 mm
3 to 8,10
3,000
6,000
100 to 150
180 to 270
1,625
3,250
TCB120 - 1 Stage
130 mm
3 to 8,10
3,000
6,000
200 to 320
360 to 576
3,350
6,700
TCB140 - 1 Stage
180 mm
3 to 8,10
2,000
4,000
340 to 650
612 to 1,170
4,700
9,400
TCB180 - 1 Stage
180 mm
3 to 8,10
2,000
4,000
580 to 1,180
1,044 to 2,124
7,000
14,100
TCB042 - 2 Stage
042 mm
20 to 100
3,000
6,000
14 to 19
25 to 34
380
760
TCB060 - 2 Stage
060 mm
15 to 100
3,000
6,000
35 to 55
63 to 99
765
1,530
TCB090 - 2 Stage
090 mm
15 to 100
3,000
6,000
100 to 150
180 to 270
1,625
3,250
TCB120 - 2 Stage
090 mm
15 to 100
3,000
6,000
200 to 320
360 to 576
3,350
6,700
TCB140 - 2 Stage
130 mm
15 to 100
2,000
4,000
340 to 650
612 to 1,170
4,700
9,400
TCB180 - 2 Stage
180 mm
15 to 100
2,000
4,000
580 to 1,180
1,044 to 2,124
7,000
14,100
Right Angle – TCBR Series
Shaft Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Radial
TCBR042 - 1 Stage
042 mm
4 to 8,10
3,000
6,000
11 to 17
20 to 31
380
760
TCBR060 - 1 Stage
060 mm
3 to 8,10 to 20
3,000
6,000
30 to 55
54 to 99
724
1,450
TCBR090 - 1 Stage
090 mm
3 to 8,10 to 20
3,000
6,000
85 to 140
153 to 252
1,600
3,200
TCBR120 - 1 Stage
130 mm
3 to 8,10 to 20
3,000
5,000
190 to 315
342 to 567
3,200
6,600
TCBR042 - 2 Stage
042 mm
20 to 100
3,000
6,000
13 to 17
23 to 31
380
760
TCBR060 - 2 Stage
060 mm
25 to 200
3,000
6,000
30 to 55
54 to 99
724
1,450
TCBR090 - 2 Stage
090 mm
25 to 200
3,000
6,000
97 to 140
175 to 252
1,600
3,200
TCBR120 - 2 Stage
090 mm
25 to 200
3,000
5,000
225 to 315
405 to 567
3,200
6,600
