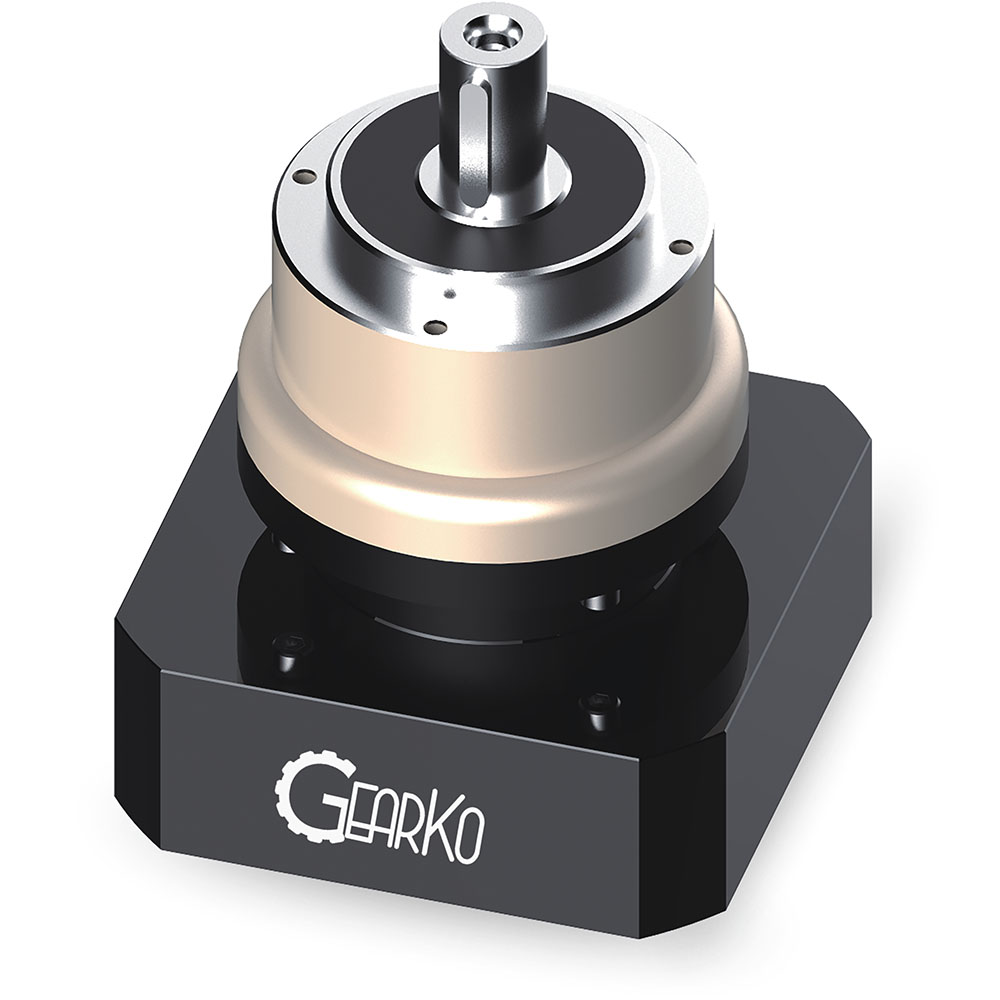

TCE Series
TCE Series
Precision Planetary Gearboxes
Standard, Modified and Customized
Product Features
- Modular design with optimized performance
- Easy mount to any motor
- Single-piece design for output shaft & planet carrier
- Single-piece design for ring gear & housing
- Full complement solid uncaged needle roller bearings for planetary gears
- All precision helical gearing for low noise and high precision
- Extreme low vibration and lifelong maintenance-free
- Low backlash
- 1-stage : ≤ 3 arcmin / ≤ 5arcmin
- 2-stage : ≤ 5arcmin / ≤ 7arcmin
Downloads
TCE Datasheet
Inline – TCE Series
Shaft Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Radial
TCE070 - 1 Stage
060 mm
3 to 8,10
3,000
6,000
35 to 55
63 to 99
765
1,530
TCE090 - 1 Stage
090 mm
3 to 8,10
3,000
6,000
100 to 150
180 to 270
1,600
3,200
TCE120 - 1 Stage
130 mm
3 to 8,10
3,000
6,000
200 to 320
360 to 576
3,500
6,700
TCE155 - 1 Stage
180 mm
3 to 8,10
2,000
4,000
340 to 650
612 to 1,170
4,700
9,400
TCE070 - 2 Stage
060 mm
15 to 100
3,000
6,000
35 to 55
63 to 99
765
1,530
TCE090 - 2 Stage
090 mm
15 to 100
3,000
6,000
100 to 150
180 to 270
1,600
3,200
TCE120 - 2 Stage
090 mm
15 to 100
3,000
6,000
200 to 320
360 to 576
3,500
6,700
TCE155 - 2 Stage
130 mm
15 to 100
2,000
4,000
340 to 650
612 to 1,170
4,700
9,400
