TD / TDR Series
TD / TDR Series
Precision Planetary Gearboxes
Standard, Modified and Customized
Product Features
- Flange output and easy mount to any motor
- Enhanced load bearing capabilities
- Extremely low vibration and quiet operation
- High structure rigidity and output torque
- Electroless nickel surface plating for anti-corrosion

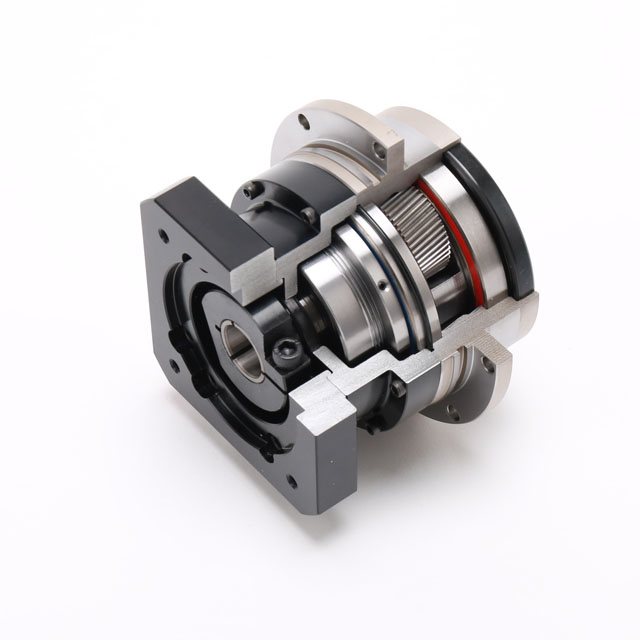

- Single-piece design for output shaft & planet carrier with robust bearings
- Single-piece design for ring gear & housing
- Single-piece design for sun gear & input shaft ensure high concentricity
- Full complement solid uncaged needle roller bearings for planetary gears
- All precision helical gearing for low noise and high precision
- Minimum 10,000 working hours with lifelong maintenance-free
- Low backlash
- 1-stage : ≤ 1arcmin / ≤3 arcmin / ≤5 arcmin
- 2-stage : ≤ 3arcmin / ≤5 arcmin / ≤7 arcmin
Downloads
TD / TDR Datasheet

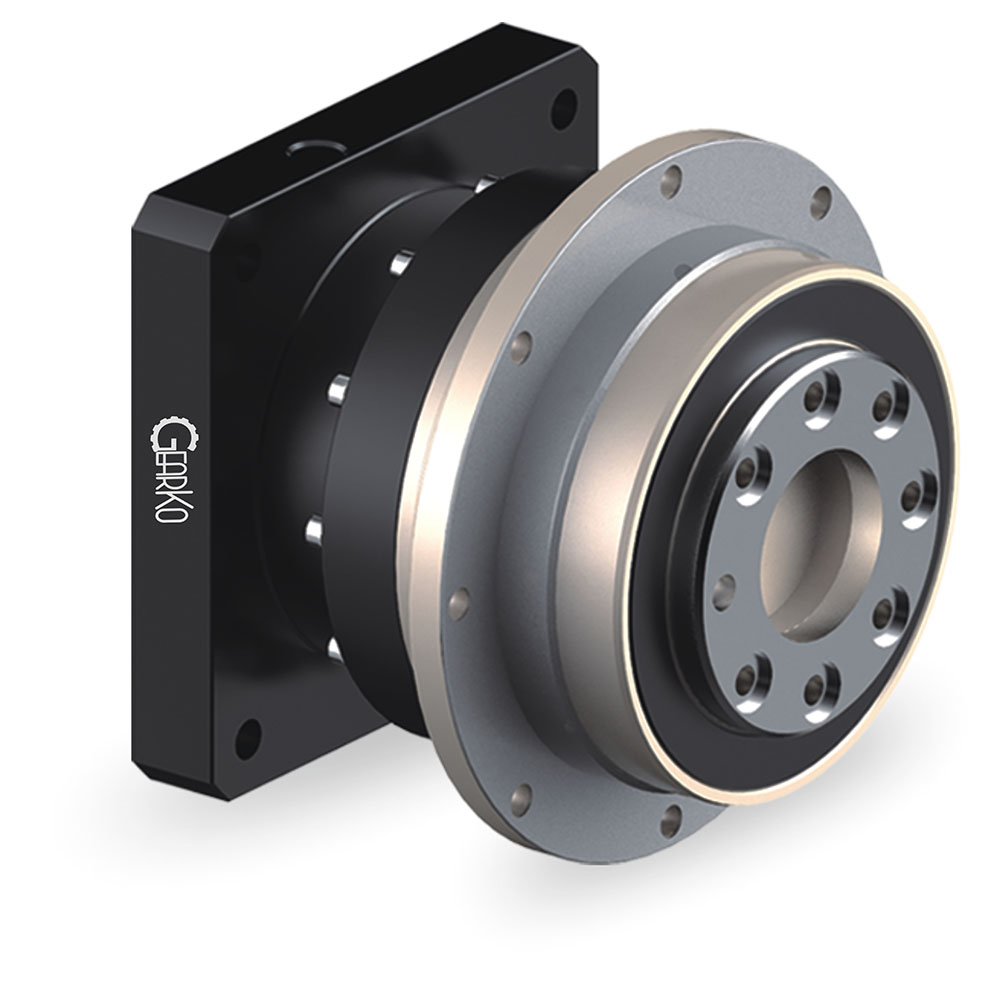

Inline – TD Series
Flange Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Bending Moment
TD047 - 1 Stage
042 mm
4,5,7,10
5,000
10,000
14 to 20
25 to 36
390
42
TD064 - 1 Stage
060 mm
4,5,7,10
5,000
10,000
42 to 58
75 to 104
765
125
TD090 - 1 Stage
090 mm
4,5,7,10
4,000
8,000
102 to160
183 to 288
2,850
235
TD110 - 1 Stage
130 mm
3 to 8, 10 to 20
4,000
8,000
235 to 333
423 to 599
2,990
430
TD140 - 1 Stage
180 mm
4,5,7,10
3,000
6,000
545 to 650
981 to 1,170
10,590
1,300
TD200 - 1 Stage
180 mm
4,5,7,10
3,000
6,000
910 to 1,200
1,638 to 2,160
16,600
3,064
TD255 - 1 Stage
220 mm
4,5,7,10
2,000
4,000
1,550 to 2,008
2,790 to 3,888
29,430
5,900
TD047 - 2 Stage
042 mm
20 to 100
5,000
10,000
14 to 20
25 to 36
390
42
TD064 - 2 Stage
060 mm
20 to 100
5,000
10,000
42 to 58
75 to 104
765
125
TD090 - 2 Stage
060 mm
20 to 100
4,000
8,000
102 to160
183 to 288
2,850
235
TD110 - 2 Stage
90 mm
20 to 100
4,000
8,000
235 to 333
423 to 599
2,990
430
TD140 - 2 Stage
130 mm
20 to 100
3,000
6,000
545 to 650
981 to 1,170
10,590
1,300
TD200 - 2 Stage
180 mm
20 to 100
3,000
6,000
910 to 1,200
1,638 to 2,160
16,600
3,064
TD255 - 2 Stage
220 mm
20 to 100
2,000
4,000
1,550 to 2,008
2,790 to 3,888
29,430
5,800

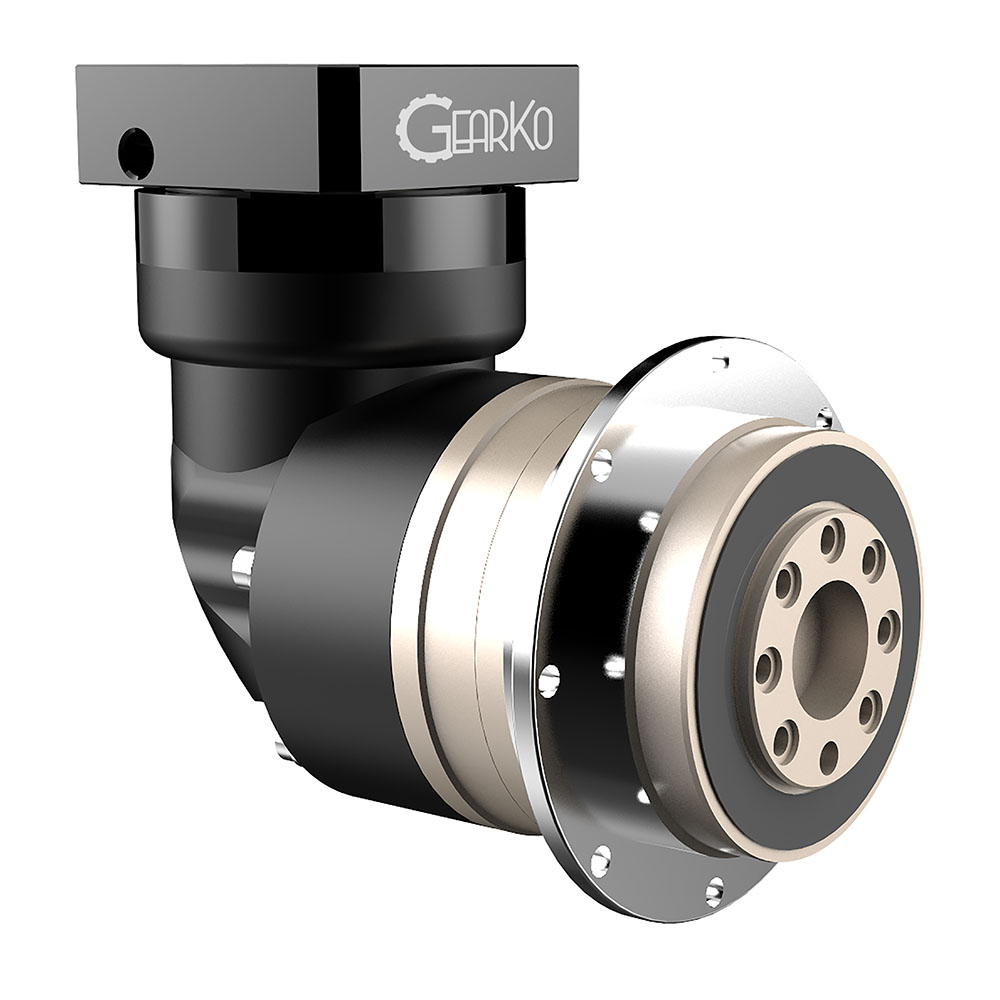

Right Angle – TDR Series
Flange Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Bending Moment
TDR064 - 1 Stage
060 mm
4,5,7,10,14,20
5,000
10,000
42 to 58
75 to 104
1,050
125
TDR090 - 1 Stage
090 mm
4,5,7,10,14,20
4,000
8,000
102 to 150
183 to 270
2,850
235
TDR110 - 1 Stage
130 mm
4,5,7,10,14,20
4,000
8,000
235 to 330
423 to 594
2,990
430
TDR140 - 1 Stage
180 mm
4,5,7,10,14,20
3,000
6,000
450 to 650
810 to 1,170
10,590
1,300
TDR064 - 2 Stage
060 mm
25 to 200
5,000
10,000
42 to 58
75 to 104
1,050
125
TDR090 - 2 Stage
060 mm
25 to 200
4,000
8,000
102 to 160
183 to 288
2,850
235
TDR110 - 2 Stage
130 mm
25 to 200
4,000
8,000
235 to 330
423 to 594
2,990
430
TDR140 - 2 Stage
130 mm
25 to 200
3,000
6,000
460 to 650
828 to 1,170
10,590
1,300
