TF Series
TF Series

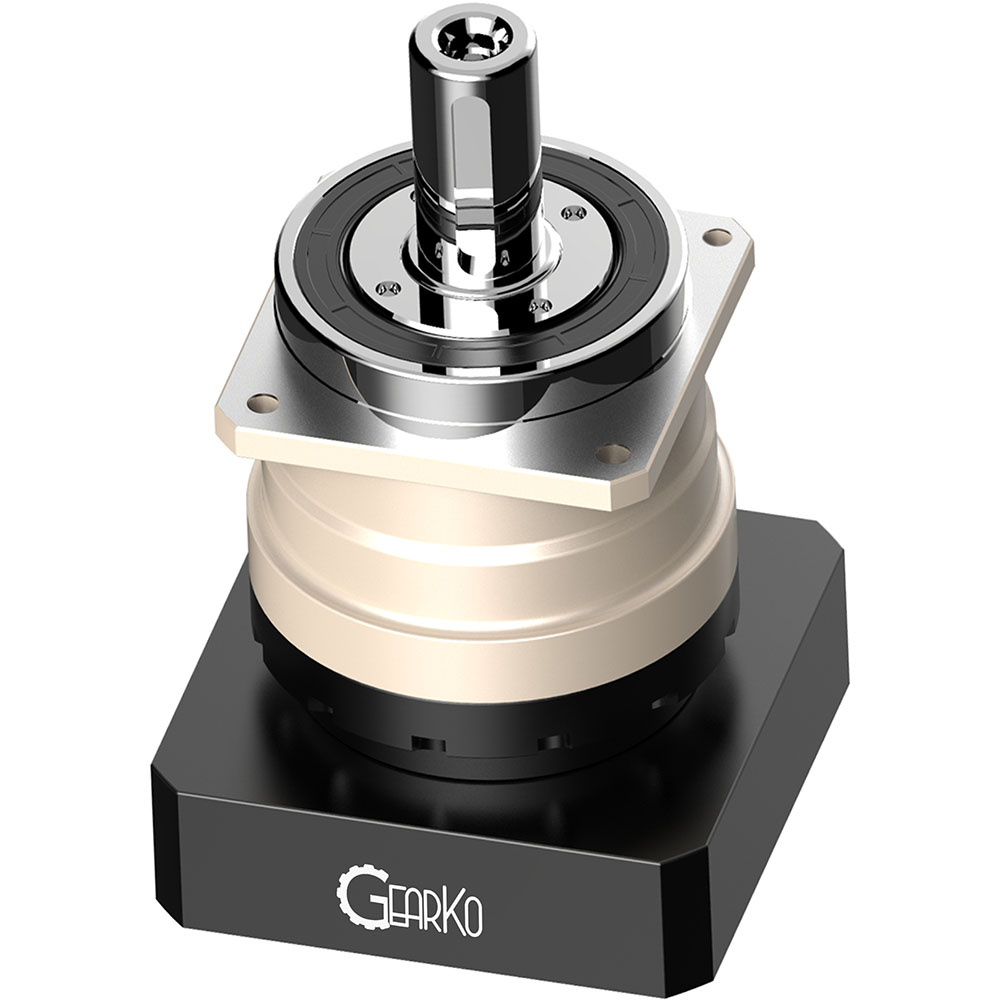

Precision Planetary Gearboxes
Standard, Modified and Customized
Product Features
- Enhanced load bearing for maximized axial and radial capability
- Higher load/size ratio for demanding applications
- Easy mount to any motor
- Electroless nickel surface plating for anti-corrosion
- Single-piece design for output shaft & planet carrier with robust bearings
- Single-piece design for ring gear & housing
- Single-piece design for sun gear & input shaft ensure high concentricity
- Full complement solid uncaged needle roller bearings for planetary gears
- All precision helical gearing for low noise and high precision
- Extreme low vibration and lifelong maintenance-free
- Low backlash
- 1-stage : ≤ 1arcmin / ≤ 3arcmin / ≤ 5arcmin
- 2-stage : ≤ 3arcmin / ≤ 5arcmin / ≤ 7arcmin
Downloads
TF Datasheet
Inline – TF Series
Shaft Output & Square Mounting Flange
Output Frame Size
Speed Ratio
Input Speed rpm Nom.
Input Speed rpm Max.
Output Torque Nm Nom.
Output Torque Nm Max.
Max Force - N Axial
Max Force - N Radial
TF060 - 1 Stage
060 mm
3 to 8,10
5,000
10,000
42 to 58
75 to 104
1,000
1,400
TF075 - 1 Stage
090 mm
3 to 8,10
4,000
8,000
102 to 160
183 to 288
3,700
4,200
TF100 - 1 Stage
130 mm
3 to 8,10
4,000
8,000
210 to 333
378 to 594
5,820
9,200
TF140 - 1 Stage
180 mm
3 to 8,10
3,000
6,000
340 to 650
612 to 1,170
11,000
14,000
TF180 - 1 Stage
180 mm
3 to 8,10
3,000
6,000
590 to 1,200
1,062 to 2,160
19,500
18,000
TF060 - 2 Stage
060 mm
15 to 100
5,000
10,000
42 to 58
75 to 104
1,000
1,400
TF075 - 2 Stage
090 mm
15 to 100
4,000
8,000
102 to 160
183 to 288
3,700
4,200
TF100 - 2 Stage
090 mm
15 to 100
4,000
8,000
210 to 333
378 to 594
5,820
9,200
TF140 - 2 Stage
130 mm
15 to 100
3,000
6,000
340 to 650
612 to 1,170
11,000
14,000
TF180 - 2 Stage
180 mm
15 to 100
3,000
6,000
590 to 1,200
1,062 to 2,160
19,500
18,000
